WhisperKOOL
Quantum SS9000
3000 Cubic Feet
$9,705.00
- BTU/H: 9572 – 10,786
- Dimensions: 31.18″L x 10.75″W x 21.18″H
- Ideal to handle larger and more challenging wine cellars.
- The Whisperkool Quantum Cooling Unit is made to handle larger and more challenging wine cellars.
The WhisperKool Quantum 9000 wine cellar cooling system is engineered for high-end residential and commercial wine storage. This fully ducted split system is designed for wine cellars requiring superior cooling capacity, precise temperature and humidity control, and silent operation. Perfect for large-scale wine cellars, the Quantum Series offers flexible installation options with up to 25 feet of ducting between the evaporator and condensing units, ensuring a quiet cellar environment without compromising cooling efficiency.
WhisperKool Quantum 9000 wine cellar cooling system is now enhanced with premium features such as a stainless steel drip tray, a sleek black metal kit, and a three-speed fan switch for airflow customization. The external insulation blanket improves energy efficiency by reducing heat loss, and the optional UV-C lighting system provides additional protection by inhibiting microorganism growth in the system.
Designed for reliability and durability, the WhisperKool Quantum 9000 wine cellar cooling system operates effectively in ambient temperatures as low as -15°F. With professional-grade components, the Quantum Series ensures long-term performance, protecting your wine collection for years to come.
- Interchangeable evaporator airflow panels
- Includes a pump system to remove access condensation
- Standard and 24V thermostat options are available
- Electro-fin coated coils for protection against outgassing that occurs in cellars
- Standard and 24V thermostat options are available
- Condensing unit can be placed outdoors with the purchase of exterior housing
- Includes a pump system to remove access condensation
- 55°F temperature differential between cellar and condensing unit air intake temperature
- 220V High Efficiency (H.E.) Condenser Option
- 3-Speed fan switch
- Stainless Steel Drip Tray
- New sleek black metal kit
- Quiet and efficient operation
- UV-C Lighting System (ADD-ON)

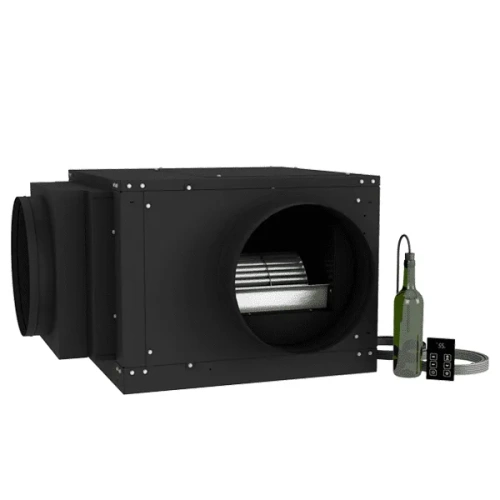

- Liquid-temperature-measuring bottle probe
- KDT Digital Controller/Thermostat with 50-ft. Cable

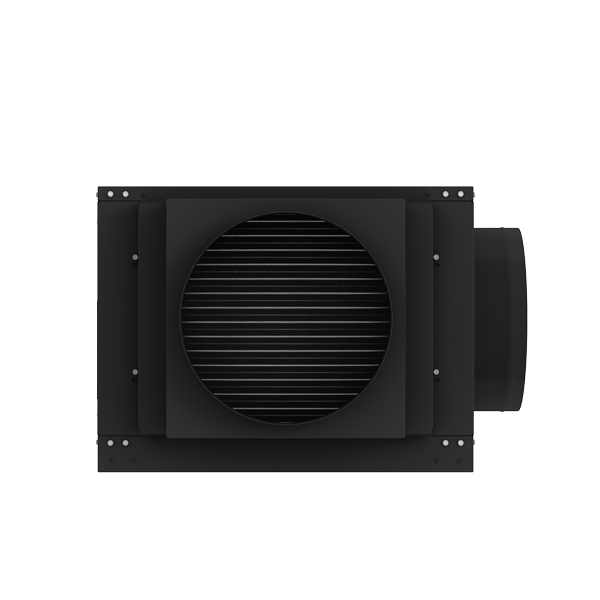

- Electro-fin coated coils for protection against corrosion
- Standard and 24V thermostat options available (ADD-ON)
9,572 – 10,786
The BTU/h value range shown here is a theoretical number. There are often circumstances under which a cellar design may require a larger unit due to variables not accounted for in the formula. For example, these variables could be building materials (such as glass, stone, concrete, etc.) that do not offer the insulation capacity required to maintain the optimal cellar environment. We recommend purchasing a unit with a larger capacity to compensate for these unaccounted-for variables. An undersized unit can lead to premature failure and will most likely prevent the cellar from reaching your desired temperature.
220V
Model Quantum SS9000
Cellar Size 3,000 cu. ft.*
BTU/h (85°F condenser air intake temperature) 9572
CFM 810
Dimensions Evaporator: 29.5”L x 30.9”W x 19.8”H • Condenser: 24”L x 18.98”W x 16.16”H
Refrigerant R-134a
HP 3.76
Voltage Rating Evaporator: 115V (15 amp dedicated circuit required) Condenser: 230V (15 amp dedicated circuit required)
Weight (lbs) Evaporator: 96 • Condenser: 75
Amps Evaporator: 3.2 (running amps) Condenser: LRA 35/RLA 6.5
Line Set Liquid Line 3/8” • Suction Line (Less than 50ft. 3/4”) (Greater than 50ft. 7/8”)
Drain Line ¾” ID CPVC
Installation Evaporator can be installed up to 25 duct feet away from the cellar. Condensing unit can be installed for up to 100 line feet from the evaporator unit.
Thermostat Advanced digital display (50ft. cable), liquid-temperature-measuring bottle probe (50ft. cable)
Temp. Delta Can maintain a 55°F cellar temperature with up to 110°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)
220V HE
Model 9000
Cellar Size 3000 cu. ft.*
Fan Speed High
BTU/h (60°F condenser air intake temperature) Sensible / Total 10985 / 11316
BTU/h (75°F condenser air intake temperature) Sensible / Total 10711 / 11019
BTU/h (85°F condenser air intake temperature) Sensible / Total 10145 / 10786
dBA 52
Dimensions 29.5”L x 30.9”W x 19.8”H
Refrigerant R-134a
Voltage Rating 120V (15-amp dedicated circuit required)
Weight (lbs) 96
Amps 9.2 (Running Amps)
Drain Line 3/4” ID CPVC
Installation Evaporator unit can be installed up to 25 duct feet away from the cellar.
Thermostat Advanced digital display (50-ft. cable), liquid-temperature-measuring bottle probe (50-ft. cable), 24V – customer supplied
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)
Condenser
dBA 48
Dimensions 31.18″L x 10.75″W x 21.8″H
Condensing Unit HP 1.0 HP
Voltage Rating 220V (15-amp dedicated circuit required)
Weight (lbs) 64
Amps LRA 20, RLA 4.25, FLA 4.89
Line Set Liquid Line 3/8” OD • Suction Line (Less than 50ft. 5/8” OD) (Greater than 50ft. 3/4” OD)
Installation Condensing Unit can be installed up to 100 line feet from the evaporator unit
Temp. Delta Can maintain a 55°F cellar temperature with up to 120°F condenser air intake temperature
Warranty Two-year limited warranty (parts and labor)
