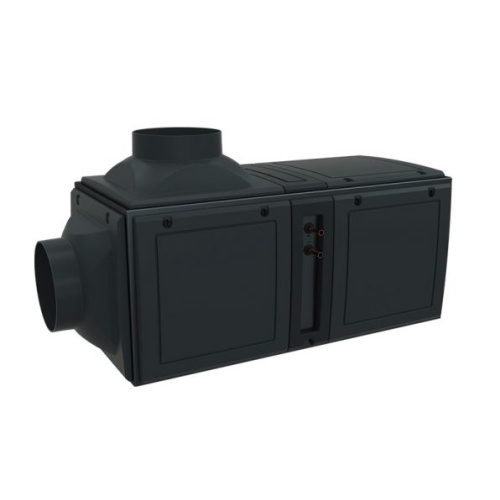

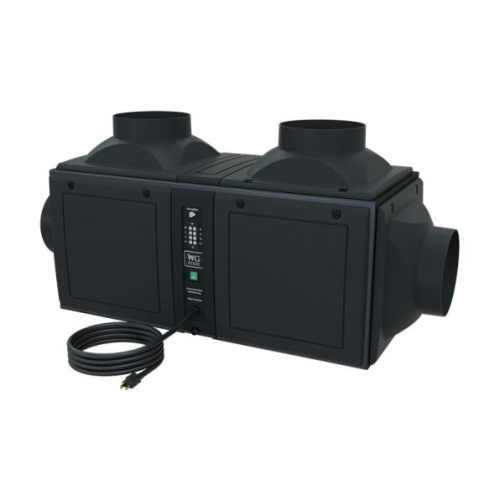

DP25 – 1/4 Ton Ducted
Wine Guardian Cooling Unit
up to 3400 BTUH

  • BTU/H: 3,760 BTU/h
  • Dimensions: Length: 33.45″ , Width: 16.6″ , Height: 15.56″
  • Ideal for small commercial and residential wine storage spaces.
  • A self contained wine cooling unit

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

SKU: 99H0200-20 Categories: ,

Wine Guardian DP 25 cooling systems are engineered for maximum versatility, efficiency, and ease of use when it comes to storing and aging wine. From distributors to refrigeration wholesalers to HVAC installation professionals, the Wine Guardian Pro series makes installation, customization, and maintenance of our solutions—for commercial or larger residential applications—seamless. Once the units are in place, the process of getting the systems up and running has been engineered with ease in mind.

Wine Guardian DP 25 System Installation

The Wine Guardian Pro series has a number of features that facilitate a straightforward installation. First, the multi-panel design makes it possible to custom configure the setup for a particular application through up to three ductwork connections. The easy plug-and-play design with a power cord standard in all units. Moreover, the primary power, controls, drain, and water connections are centralized for an efficient utility connection in all Wine Guardian Pro Ducted systems.

Wine Guardian DP 25  System Customization

Wine Guardian Pro units utilize 24-volt electronics and are Wi-Fi compatible. These features allow for simple integration with today’s smart homes or commercial building management systems. Additionally, while our standard units can be customized at the time of ordering with high- or low-ambient protection, the Pro series comes with these options built right in. An integral electric heater is another way the Pro series can be customized depending on where a client is storing their wine or valuables. In addition, the Pro series is robust enough to accommodate the retrofitting of a humidifier should a customers’ needs change after purchase.

Wine Guardian DP 25 System Features

  • 24-volt electronics for integration with today’s smart thermostats and building management systems
  • High- and low-pressure safety switches
  • Refrigerant sight glass, filter drier, and access ports
  • Duct collar connections
  • Low ambient protection
  • High ambient protection (on limited models)
  • 5-year compressor warranty


  • Utility piping in one easily accessible location
  • Multiple evaporator and condenser outlet locations (Any of three sides)
  • Easily mountable in floor, ceiling, or wall applications
  • Duct collars on supply & return and intake & exhaust


  • Aluminum body and all-aluminum evaporator coils (fins & tubes) are corrosion-resistant
  • Standard high static pressure fan for extended lengths of ductwork
  • Completely serviceable in the field

Unique Options

  • Bolt-on humidifier
  • Electric heat
  • Water-cooled or air-cooled
Cooling Air-cooled, Water-cooled
BTU 1000 – 3300 BTU/h
Kilowatts 0.29 – 0.97 Kilowatts
Width: 33 1/2″
Height: 15 5/8″
Depth: 16 5/8″
Room Capacity: Up to 3400 BTUH
Electrical: 115v/1ph/60hz
